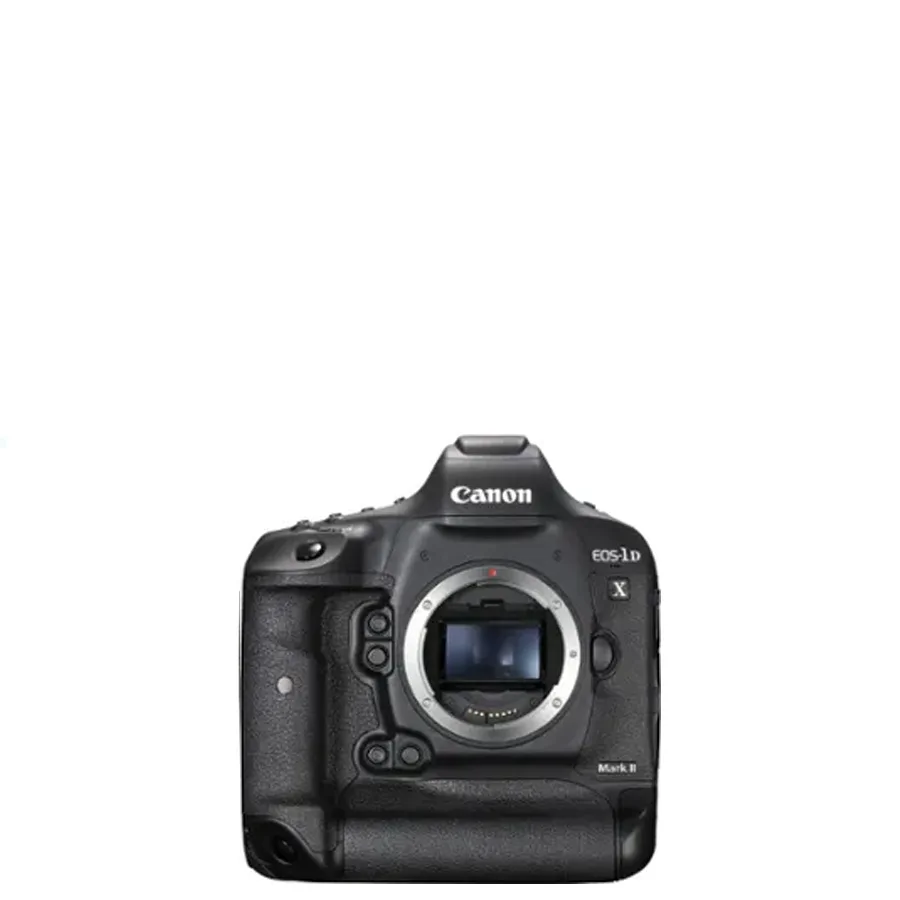

Professional Canon 1D X Mark II Repair
Why Choose Us for Canon EOS-1D X Mark II Repair
We fix what others couldn’t — or can’t.
Same-Day Repair
Original Parts
1–3 Month Warranty
Professional Team
Canon EOS-1D X Mark II Service Prices
Prices exclude spare parts. Component-level repair whenever possible. Express queue available.
- Diagnostics – $0 if repair is completed / $60 if declined
- Express repair (2–3 hours) – +50% to the selected service
- No power / shuts off (rails, fuses, DC-DC) – from $190
- Rear LCD module replacement (3.2″) – from $155
- Top status LCD replacement – from $150
- Shutter unit replacement (high-FPS use) – from $270
- Mirror box / sub-mirror alignment – from $175
- AF module clean + calibration – from $145
- Hot shoe contacts / sync circuit repair – from $95
- CFast 2.0 / CF slot pin repair – from $140 (CFast) / from $120 (CF)
- USB 3.0 port (Micro-B) replacement – from $130
- LAN/Ethernet jack rework – from $125
- Buttons / main dial / joystick rework – from $115
- Weather-seal refresh (doors, gaskets) – from $105
- Full-frame sensor cleaning (wet swab + dust map) – from $85
- Body deep clean (ports + exterior) – from $70
- Battery door / latch repair (LP-E19 / LP-E4N) – from $95
- Top cover / rear shell replacement – from $190
- Main board / power circuit repair – from $220
- Firmware recovery / stuck on logo – from $115
- Lens mount & bayonet rebuild (EF) – from $145
Final cost depends on damage level and parts availability. Every service includes full testing and a written warranty.
Typical EOS-1D X Mark II Issues We Fix
- AF inconsistency at 14 fps bursts — AF unit service and calibration.
- Err 99 / random lockups — shutter path, flex, or board faults.
- Rear LCD dim/bleed — module replacement.
- CFast/CF “Card error” or bent pins — slot rebuild + controller check.
- LAN tethering instability — jack reflow or replacement.
EOS DSLRs — Error Codes Quick Hints
| Code | Meaning | First Aid |
|---|---|---|
| Err 20 | Mechanical fault | Power cycle; remove battery/lens; service mirror/shutter if repeats. |
| Err 30 | Shutter problem | Fresh LP-E19; inspect blades; likely shutter replacement. |
| Err 40 | Power/electrical | Check contacts; avoid hot-plug; board diagnostics. |
| Err 70 | Data/processing | Reset; new card; firmware/board rework if persistent. |
| Err 80/99 | Image/general fault | Stop use; full diagnostics to isolate shutter/sensor/firmware path. |
Pro Tips for EOS-1D X Mark II
- Use CFast 2.0 (VPG-130) or fast UDMA7 CF; avoid microSD adapters.
- Keep hot shoe, LAN, and USB 3.0 contacts clean to prevent dropouts.
- Replace door gaskets periodically to maintain weather sealing.
- Store LP-E19 partly charged; run full cycles for calibration occasionally.
- Update firmware and verify AF microadjustment with main lenses.
FAQ – Canon EOS-1D X Mark II Repair
1. Camera won’t power on or dies under load.
We test LP-E19 health, charger comms, fuses, and DC-DC rails, then rework or replace the affected circuit.
2. AF is inconsistent at high FPS.
We clean the AF unit, check sub-mirror geometry, update firmware, and perform AF calibration with a reference lens.
3. Err 99 appears intermittently.
We isolate shutter/mirror flex and main board paths, reseat or replace failing components, and stress-test at 14 fps.
4. Top LCD segments missing or leaking.
We replace the status LCD and reseal the top cover to keep weather protection intact.
5. CFast/CF “Card not formatted”.
We rebuild the slot, replace bent pins, verify controller lines, and test with known-good media.
6. Camera is stuck on the logo.
We perform service-level reflash, verify boot partitions, and check NAND/SD storage integrity.
