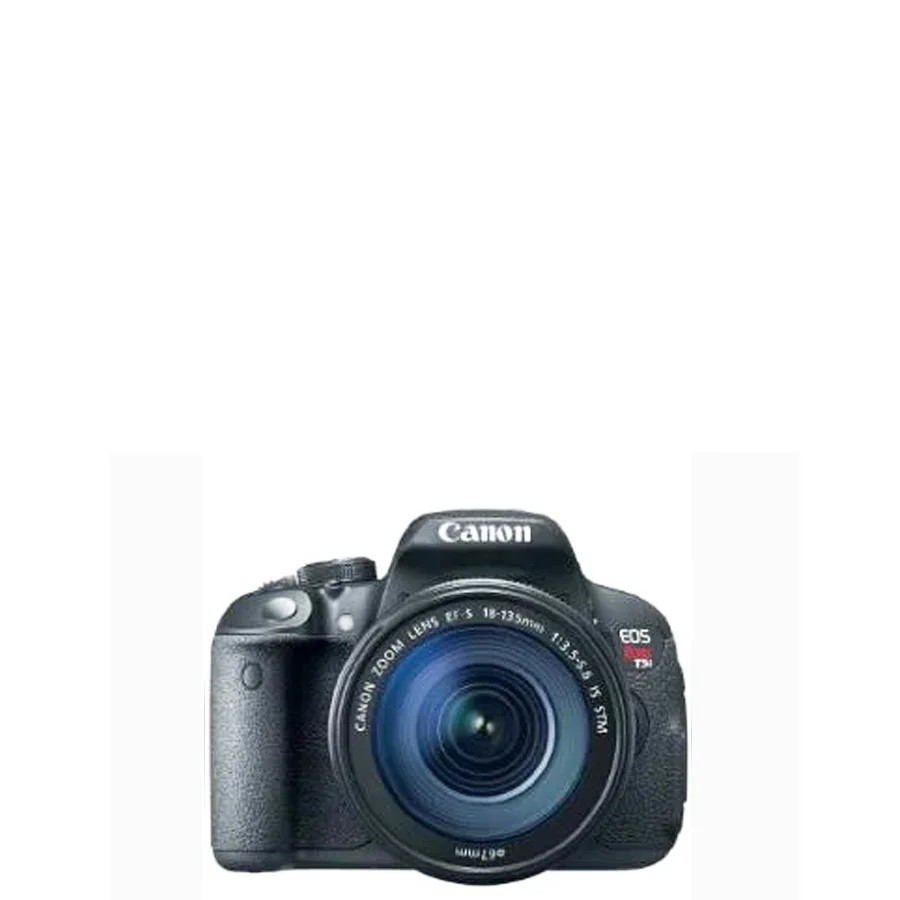

Professional Canon EOS 700D (Rebel T5i) Repair
Why Choose Us for Canon 700D Repair
We fix what others couldn’t — or can’t.
Same-Day Repair
Original Parts
1–3 Month Warranty
Professional Team
Canon Service Prices
Prices exclude spare parts. Whenever possible we do component-level repair. Express queue available for this DSLR camera.
- Diagnostics – $0 if repair is completed / $60 if declined
- Express repair (2–3 hours) – +50% to the selected service
- No power / shuts off (power rails, fuses, DC-DC) – from $160
- Rear LCD module replacement (3.0″ touch, vari-angle) – from $145
- Shutter unit replacement – from $210
- Mirror box / sub-mirror alignment – from $140
- AF module clean + calibration – from $110
- Hot shoe contacts / sync circuit repair – from $80
- SD card slot pin repair – from $95
- USB 2.0 (Mini-B) port replacement – from $100
- HDMI (Type C) port replacement – from $120
- 3.5 mm mic input jack repair – from $110
- Main dial / buttons rework – from $95
- Rubber grips re-adhesion / door hinges – from $70
- APS-C sensor cleaning (wet swab + dust map) – from $60
- Body deep clean (ports + exterior) – from $55
- Battery door / latch repair (LP-E8) – from $75
- Top cover / rear shell replacement – from $160
- Main board / power circuit repair – from $180
- Firmware recovery / stuck on logo – from $90
- Lens mount & bayonet rebuild (EF) – from $120
Final cost depends on damage level and parts availability. Every service includes full testing of the camera and a written warranty.
Typical Canon EOS 700D Issues We Fix
- Touchscreen dead zones or ghost touches — digitizer/LCD stack replacement and sealing.
- Flip-out screen shows lines or blanks at angles — hinge flex cable replacement.
- Err 70/80 after bursts — connector cleaning, firmware path rework, board-level diagnostics.
- Mode dial misses positions — encoder board or top flex replacement.
- “Card not formatted” or “Card locked” — SD slot rebuild and controller check.
EOS DSLRs — Error Codes Quick Hints
| Code | Meaning | First Aid |
|---|---|---|
| Err 20 | Mechanical fault | Power cycle; remove battery/lens; service mirror/shutter if it repeats. |
| Err 30 | Shutter problem | Fresh LP-E8; inspect blades; likely shutter replacement. |
| Err 40 | Power/electrical | Check contacts; avoid hot-plug; board diagnostics. |
| Err 70 | Data/processing | Reset; new SD card; firmware/board rework if persistent. |
| Err 80/99 | Image/general fault | Stop use; full diagnostics to isolate shutter/sensor/firmware path. |
Pro Tips for Canon EOS 700D
- Use quality UHS-I SD/SDHC/SDXC cards; avoid microSD adapters.
- Keep hot shoe, battery, and SD contacts clean to prevent dropouts.
- Support the flip screen; don’t twist the hinge under load.
- Update firmware and format cards in-body after backups.
- Store LP-E8 at 40–60% and full-cycle occasionally.
FAQ
1. Unit won’t power on or dies under load.
We test LP-E8 health, charger comms, fuses, and DC-DC rails, then rework or replace the affected circuit.
2. Touchscreen is unresponsive or jittery.
We replace the digitizer/LCD assembly, reseal, and verify touch calibration.
3. Err 70 appears intermittently.
We isolate shutter and main-board paths, clean connectors, reflash service firmware, and stress-test with long bursts.
4. Articulated screen shows white image or lines.
This points to a fatigued hinge flex. We replace the flex and check the hinge tension.
5. SD errors or “Card not formatted”.
We rebuild the slot, replace bent pins, verify controller lines, and test with known-good UHS-I media.
6. Stuck on the logo.
We perform service-level reflash, verify boot partitions, check NAND integrity, and after service we stress-test the camera with multiple lenses and cards.
