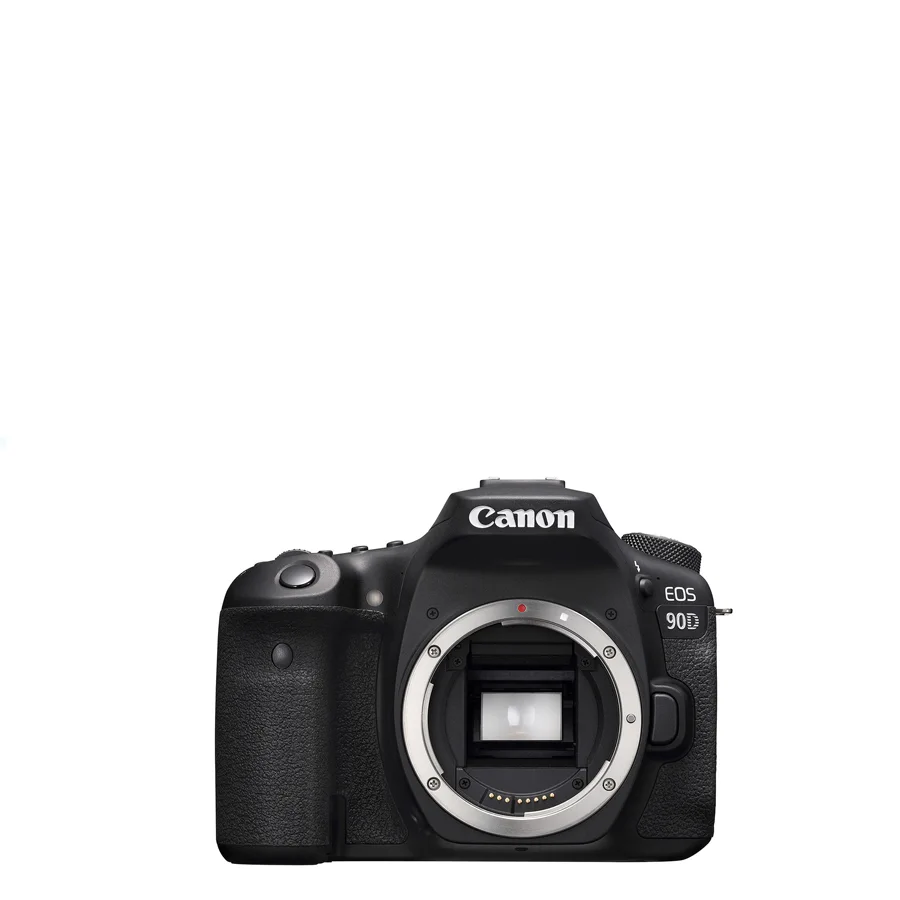

Professional Canon 90D Repair
Why Choose Us for Canon 90D Repair
We fix what others couldn’t — or can’t.
Same-Day Repair
Original Parts
1–3 Month Warranty
Professional Team
Canon EOS 90D Service Prices
Prices exclude spare parts. Component-level repair whenever feasible. Express/priority queue available.
- Diagnostics – $0 if you proceed / $60 if declined
- Express repair (2–3 hours) – +50% to selected service
- No power / random shutdowns (rails, fuses, DC-DC) – from $175
- Vari-angle touch LCD assembly (3.0″) – from $150
- Top status LCD replacement – from $135
- Viewfinder overlay LCD service – from $150
- Shutter assembly replacement – from $230
- Mirror box / sub-mirror alignment – from $150
- AF module cleaning + calibration – from $125
- Hot shoe / flash sync repair – from $85
- SD slot repair (SDHC/SDXC, UHS-I) – from $110
- USB 2.0 (Micro-B) port replacement – from $110
- HDMI (Micro, Type D) port replacement – from $115
- Main dial / rear wheel / buttons rework – from $95
- Wi-Fi / Bluetooth board service – from $125
- Mic / headphone jack board service – from $115
- Weather-seal refresh (doors, gaskets) – from $90
- APS-C sensor cleaning (wet swab + dust map) – from $65
- Body deep clean (ports + exterior) – from $60
- Battery door / latch repair (LP-E6N) – from $75
- Top cover / rear shell replacement – from $170
- Main board / power regulation repair – from $190
- Firmware recovery / stuck on logo – from $95
- Lens mount & bayonet service (EF) – from $125
Final cost depends on fault complexity and parts availability. Every repair includes full testing and a written warranty.
Typical EOS 90D Issues We Fix
- Err 20/30 during bursts — shutter or mirror drive; assembly service.
- Live View AF drift or hunting — Dual Pixel AF calibration and sensor check.
- Articulating touchscreen ghosting / no touch — flex damage; assembly swap.
- SD write/read errors — slot rebuild and controller validation.
- Wi-Fi/Bluetooth pairing issues or battery drain — RF board rework and retune.
EOS DSLRs — Error Codes Quick Hints
| Code | Meaning | First Aid |
|---|---|---|
| Err 20 | Mechanical fault | Power cycle; reseat lens/battery; service mirror/shutter if repeats. |
| Err 30 | Shutter problem | Try fresh LP-E6N; inspect blades; likely shutter replacement. |
| Err 40 | Power/electrical | Clean contacts; avoid hot-plug; board diagnostics. |
| Err 70 | Data/processing | Reset; new SD card; firmware/board service if persistent. |
| Err 80/99 | General/image fault | Stop use; full diagnostics to isolate shutter/sensor/firmware path. |
Pro Tips for EOS 90D
- Use fast SDXC UHS-I (V30 or better); avoid microSD adapters.
- To sustain ~10 fps keep LP-E6N healthy and cards high-speed.
- Keep firmware current; verify AF microadjustment for key lenses.
- Disable Bluetooth when not needed to reduce idle drain.
- Protect the hinge and flex of the vari-angle LCD, especially in cold.
FAQ
1. The camera won’t power on or shuts off under load.
We check LP-E6N packs, DC-DC rails, fuses and protection, then restore the failing stage.
2. Live View AF is inconsistent.
We calibrate Dual Pixel AF, verify sensor alignment and update firmware.
3. Err 20/30/99 appears intermittently.
We isolate shutter/mirror flex and PCB paths, replace weak parts and stress-test.
4. Touchscreen or hinge is damaged.
We replace the LCD/touch assembly, flex and hinge hardware, then reseal.
5. SD slot errors or “Card not recognized”.
We rebuild the slot, straighten/replace pins, validate controller lines and test with certified media.
6. Wi-Fi/Bluetooth cannot connect or drains battery.
We service the RF board, retune antennas and verify low-power modes.
