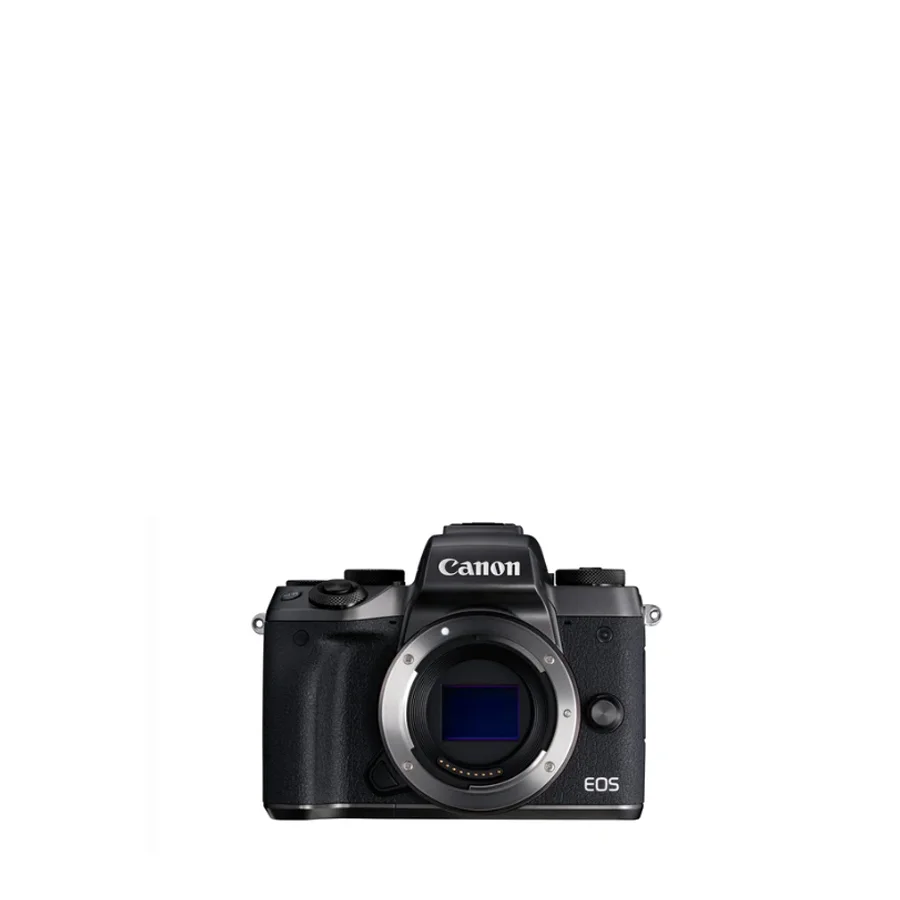

Professional Canon EOS M5 Repair
Why Choose Us for Canon EOS M5 Repair
We fix what others couldn’t — or can’t.
Same-Day Repair
Original Parts
1–3 Month Warranty
Professional Team
Canon EOS M5 Service Prices
Prices exclude spare parts. Component-level repair whenever possible. Express queue available.
- Diagnostics – $0 if repair is completed / $50 if declined
- Express repair (2–3 hours) – +50% to the selected service
- No power / won’t turn on (power-rail diagnosis) – from $140
- LCD display module replacement – from $120
- Touchscreen/digitizer replacement – from $115
- Top cover / rear shell replacement – from $155
- Sensor cleaning (wet swab + dust map) – from $60
- Body deep clean (ports + exterior) – from $50
- SD UHS-I card slot pin repair – from $85
- USB 2.0 / micro-HDMI port replacement – from $105
- Mic input jack repair (3.5 mm) – from $110
- Remote (E3) port repair – from $95
- EVF eye-sensor / LCD auto-switch repair – from $95
- Mode dial / top dial board repair – from $120
- Shutter unit replacement – from $170
- Main board / power circuit repair – from $145
- Hot shoe repair – from $100
- Lens mount & bayonet rebuild (EF-M) – from $115
- Firmware recovery / stuck on logo – from $90
- Buttons / dials flex repair – from $110
Final cost depends on damage level and parts. Every service includes testing and a written warranty.
Typical EOS M5 Issues We Fix
- Won’t power on after storage or charging; LP-E17 or power-board faults.
- EVF stays black or LCD won’t switch; eye-sensor contamination or failure.
- Touchscreen drift or dead zones; digitizer or flex cable damage.
- Mode dial jumps or is unresponsive; top board or encoder wear.
- Adapter or lens comm errors (EF/EF-S via EF-EOS M); contact cleaning and mount alignment.
EOS/M-Series Error Codes — Quick Hints
| Code | Meaning | First Aid |
|---|---|---|
| Err 20 | Mechanical fault | Power cycle; remove battery/lens; service shutter if repeats. |
| Err 30 | Shutter problem | Fresh battery; inspect blades; likely unit replacement. |
| Err 40 | Power/electrical | Check contacts; avoid hot-plug; board diagnosis. |
| Err 70 | Data/processing | Reset; new SD; firmware/board rework if persistent. |
| Err 80/99 | Image/general fault | Stop use; full diagnostics to isolate sensor/firmware path. |
Pro Tips for EOS M5
- Use UHS-I U3 SD cards; format in-camera.
- If the EVF or LCD won’t switch, clean the eye sensor area and disable auto-switch temporarily.
- Minimize strain on micro-HDMI and USB; use short cables and a clamp.
- Use genuine LP-E17 batteries; check charger blink codes before reuse.
- Keep hot shoe and mic jack dry and clean to avoid intermittent audio or flash misfires.
FAQ – Canon EOS M5 Repair
1. The camera won’t power on.
We test the LP-E17, fuses, and power rails, then rework or replace the board as needed.
2. EVF shows black or won’t switch from LCD.
We clean or replace the eye sensor, verify EVF connections, and calibrate auto-switch behavior.
3. Touchscreen is unresponsive or drifts.
We inspect flex ribbons, replace the digitizer, and validate input across the panel.
4. Mode dial acts erratically.
We service the top dial board and encoder and reseat connectors on the top assembly.
5. Mic input has noise or no signal.
We replace the 3.5 mm jack, check ground paths, and test with reference mics.
6. Recommended memory cards?
UHS-I U3 SDXC. Always format in-camera.
